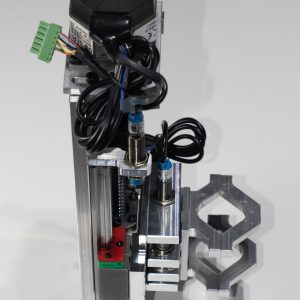

Z-axis CNC Plasma Torch Floating Head - Image 2

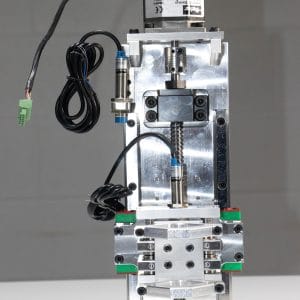

Z-axis CNC Plasma Torch Floating Head - Image 3
Z-axis CNC Plasma Torch Floating Head - Image 4
Z-axis CNC Plasma Torch Floating Head - Image 5
Z-axis CNC Plasma Torch Floating Head - Image 6
Z-axis CNC Plasma Torch Floating Head - Image 7

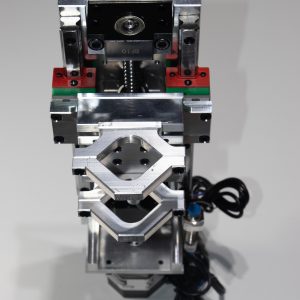

Z-axis CNC Plasma Torch Floating Head - Image 8

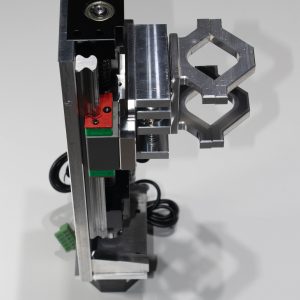

Z-axis CNC Plasma Torch Floating Head - Image 9
Z-axis CNC Plasma Torch Floating Head - Image 10
Z-axis CNC Plasma Torch Floating Head - Image 11
Z-axis CNC Plasma Torch Floating Head - Image 12
Z-axis CNC Plasma Torch Floating Head - Image 1Z-axis CNC Plasma Torch Floating Head - Image 2Z-axis CNC Plasma Torch Floating Head - Image 3Z-axis CNC Plasma Torch Floating Head - Image 4Z-axis CNC Plasma Torch Floating Head - Image 5Z-axis CNC Plasma Torch Floating Head - Image 6Z-axis CNC Plasma Torch Floating Head - Image 7Z-axis CNC Plasma Torch Floating Head - Image 8Z-axis CNC Plasma Torch Floating Head - Image 9Z-axis CNC Plasma Torch Floating Head - Image 10Z-axis CNC Plasma Torch Floating Head - Image 11Z-axis CNC Plasma Torch Floating Head - Image 12

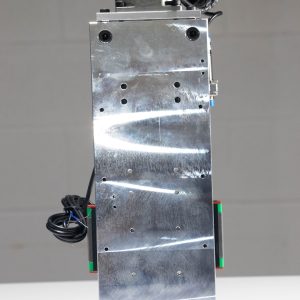

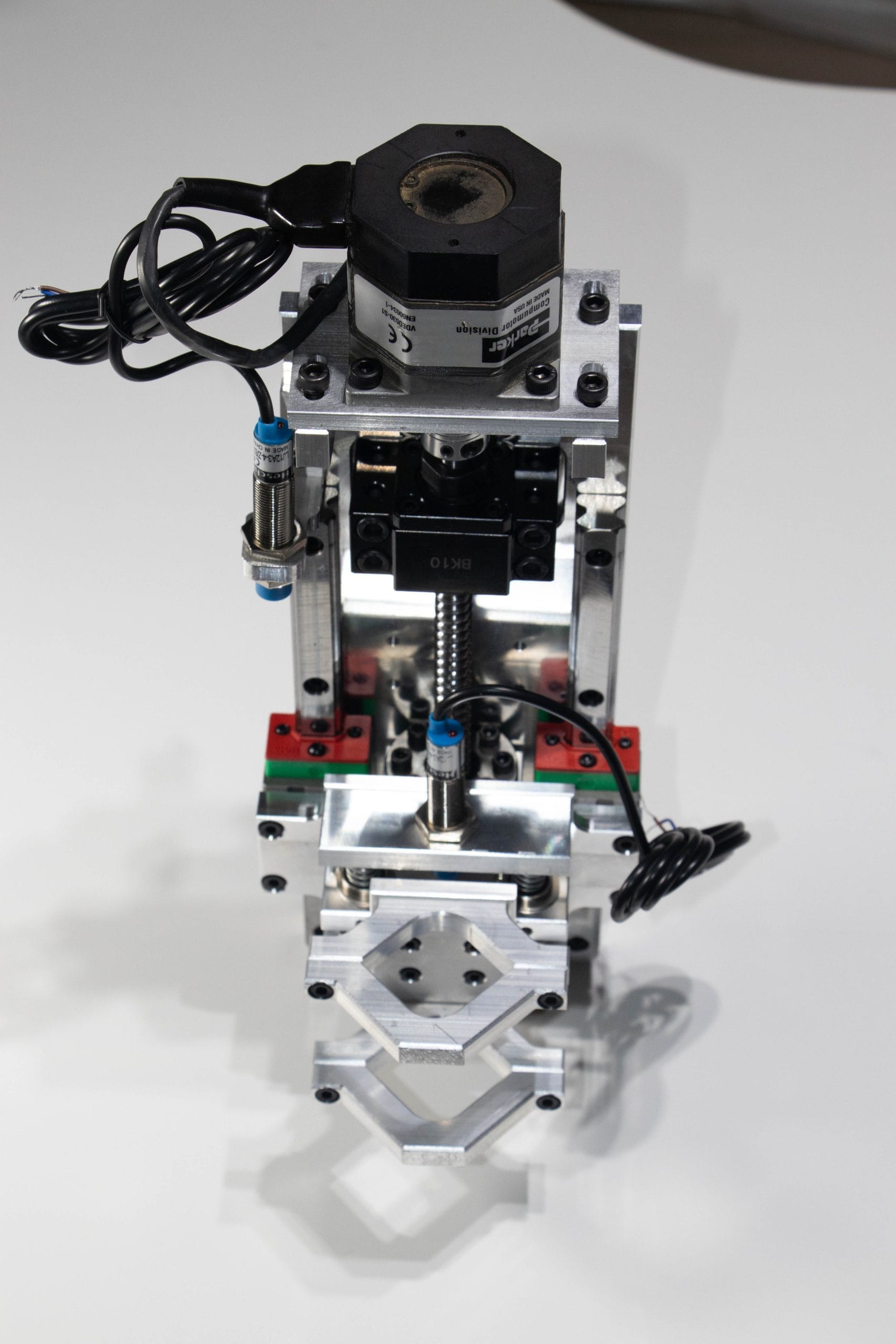

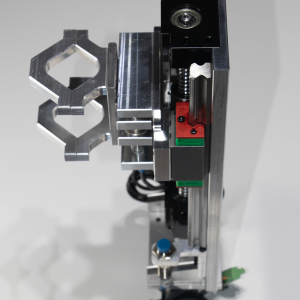

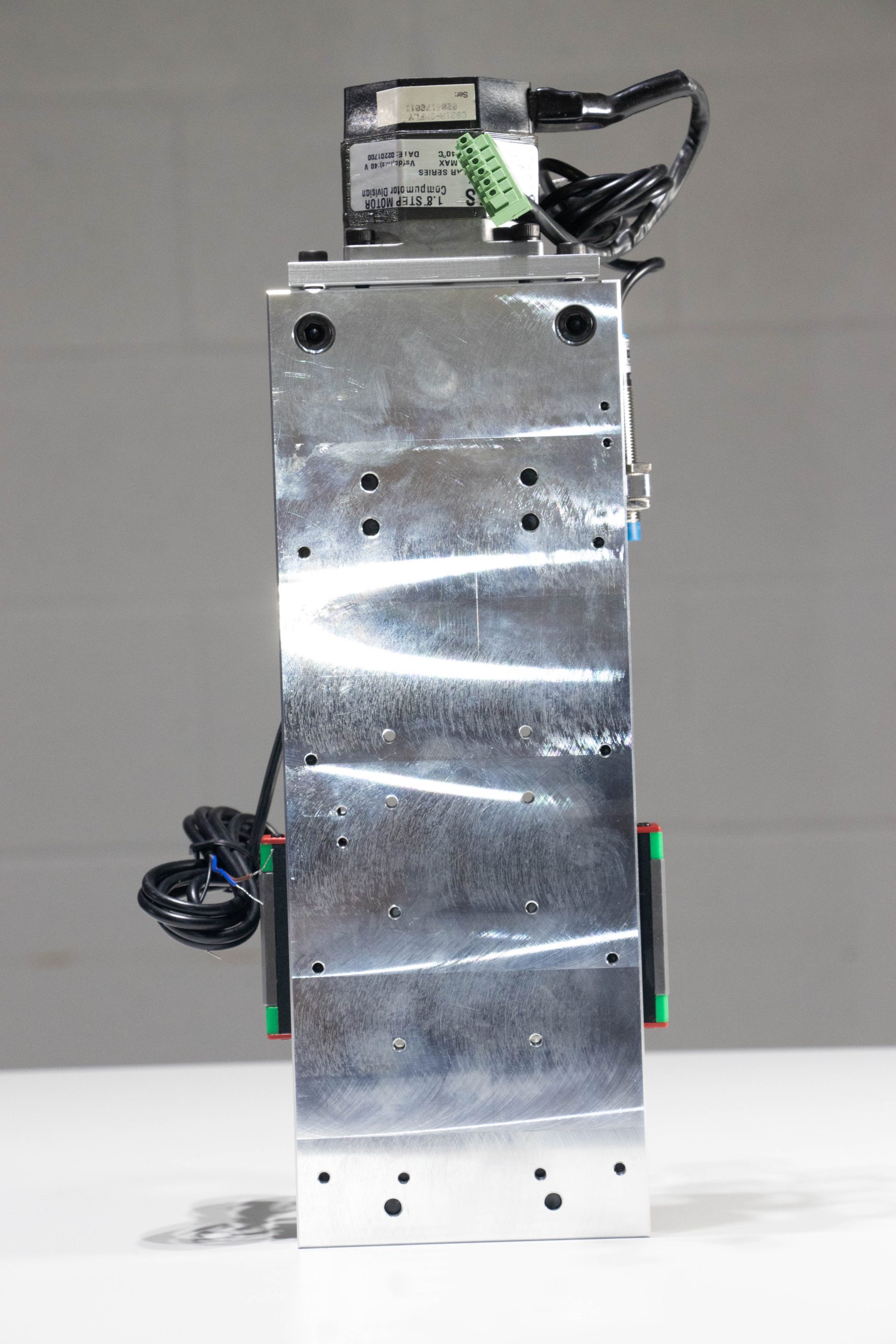

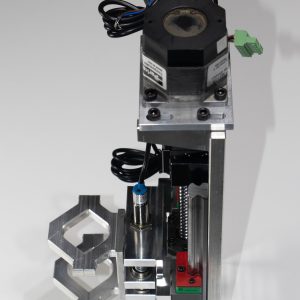

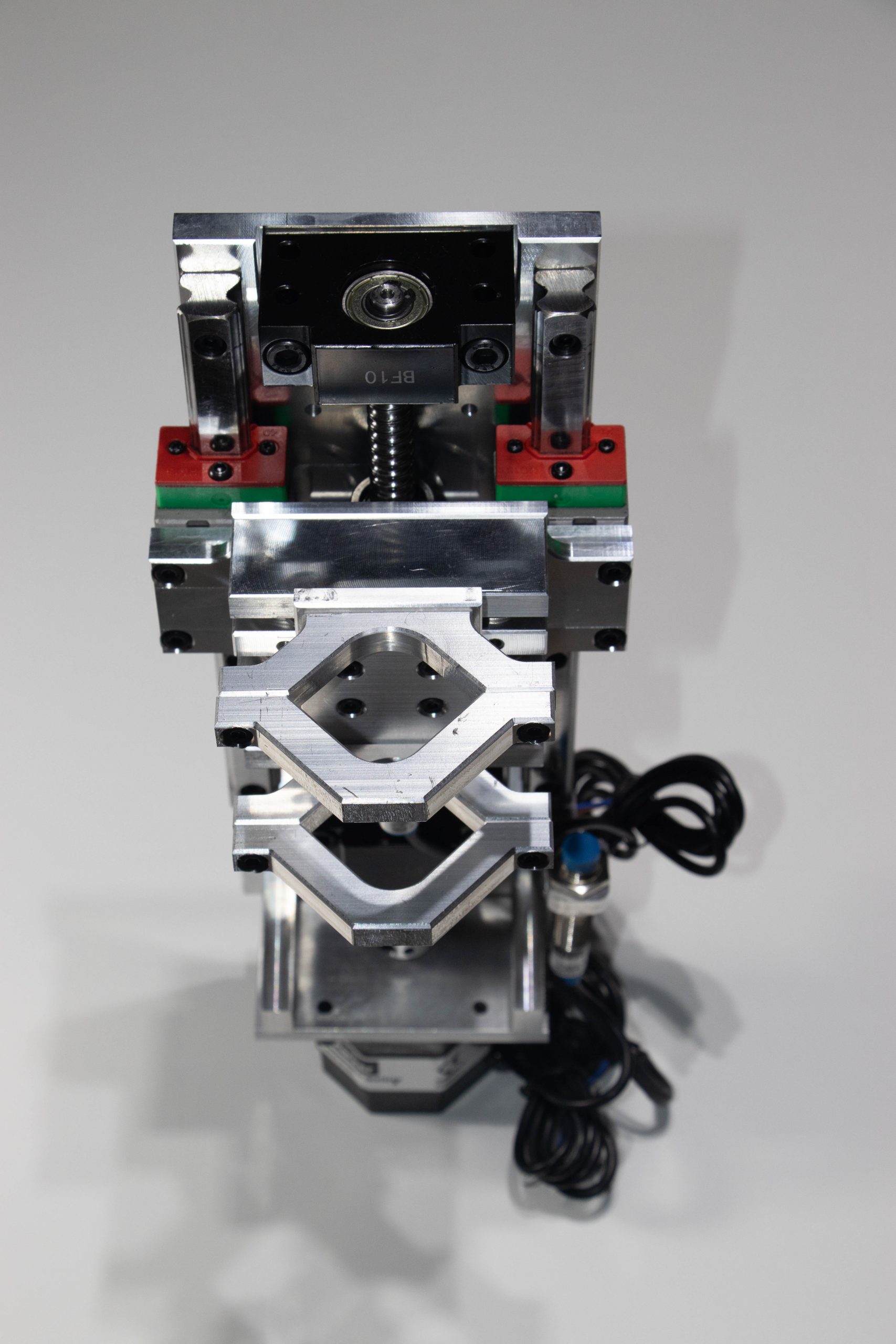

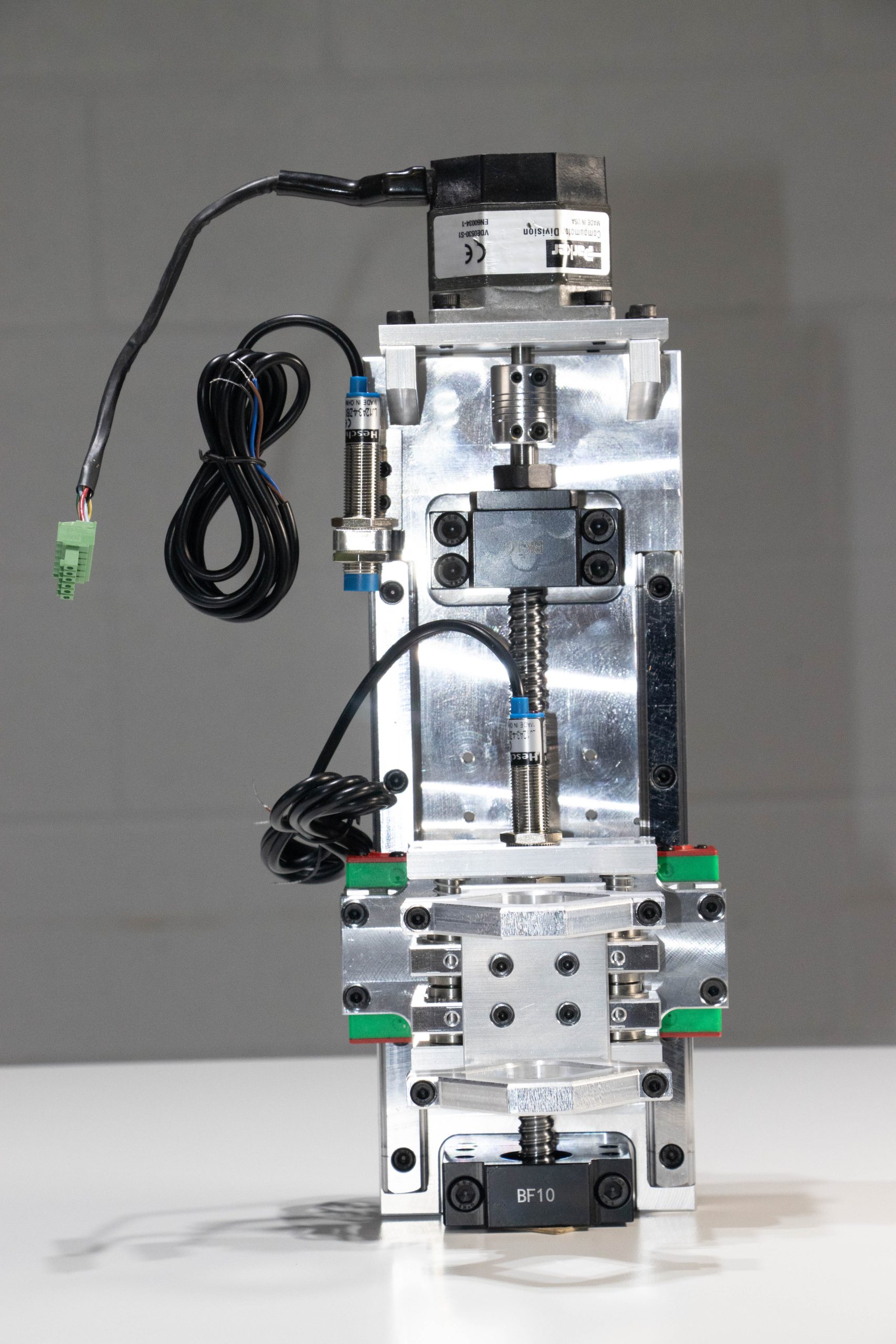

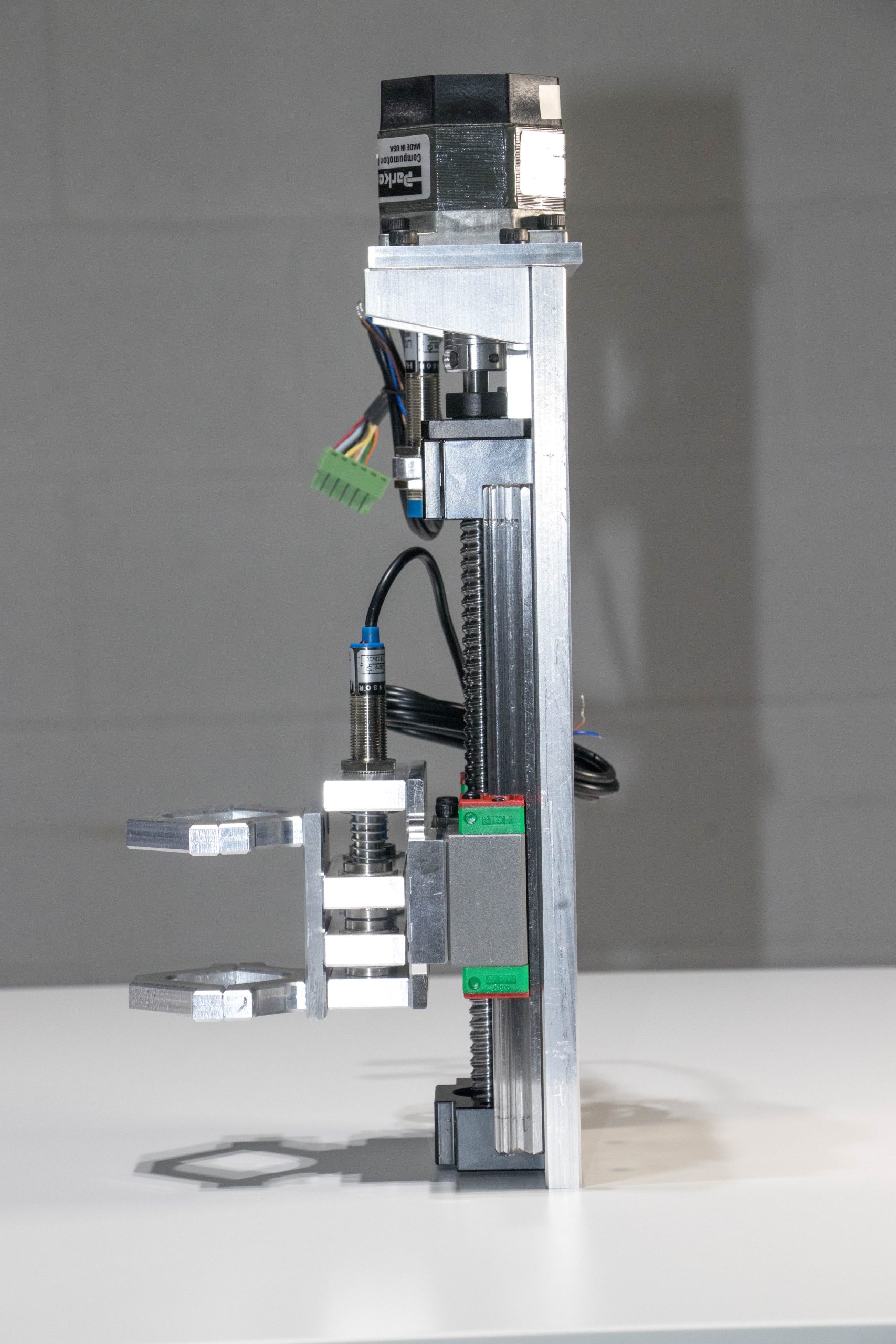

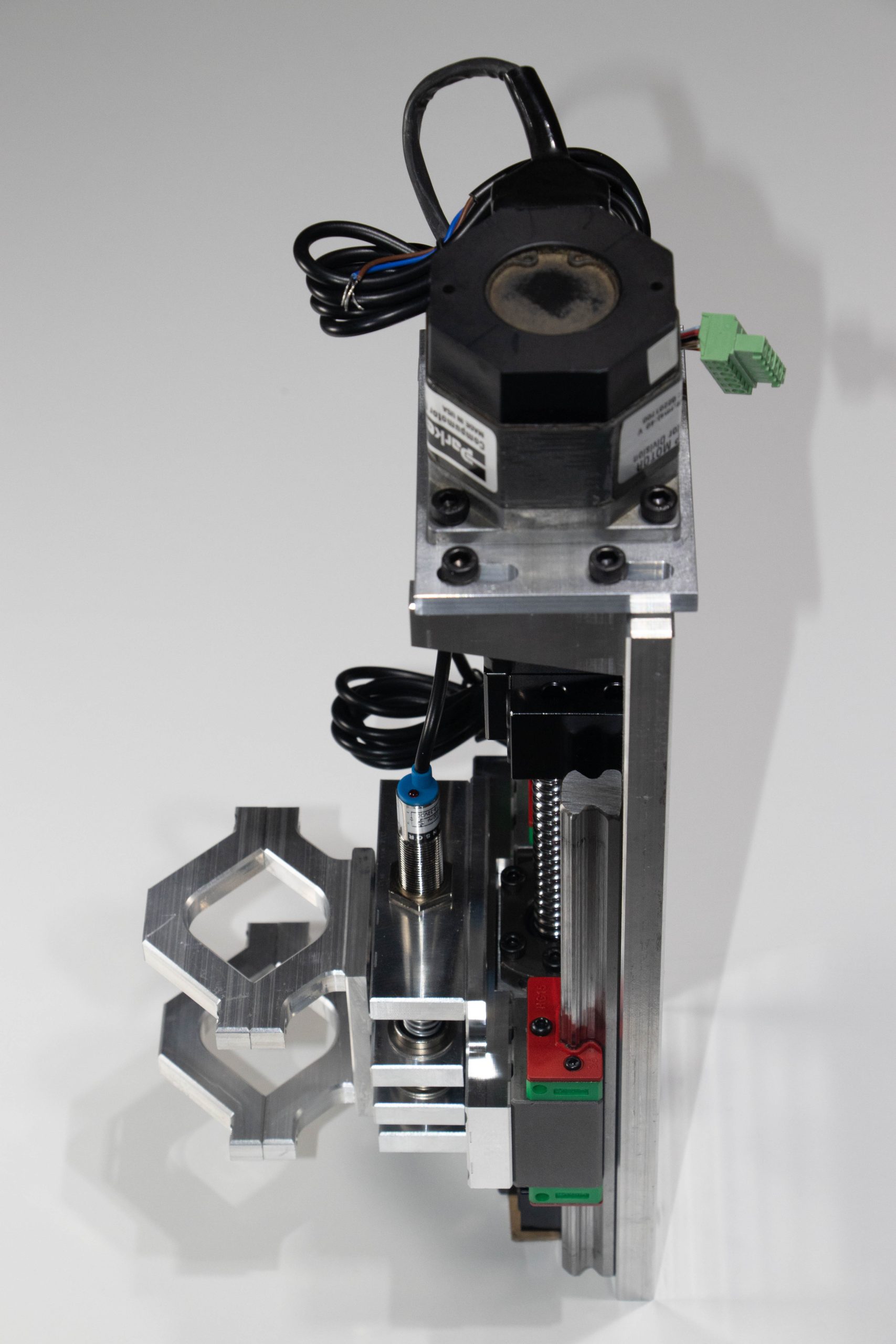

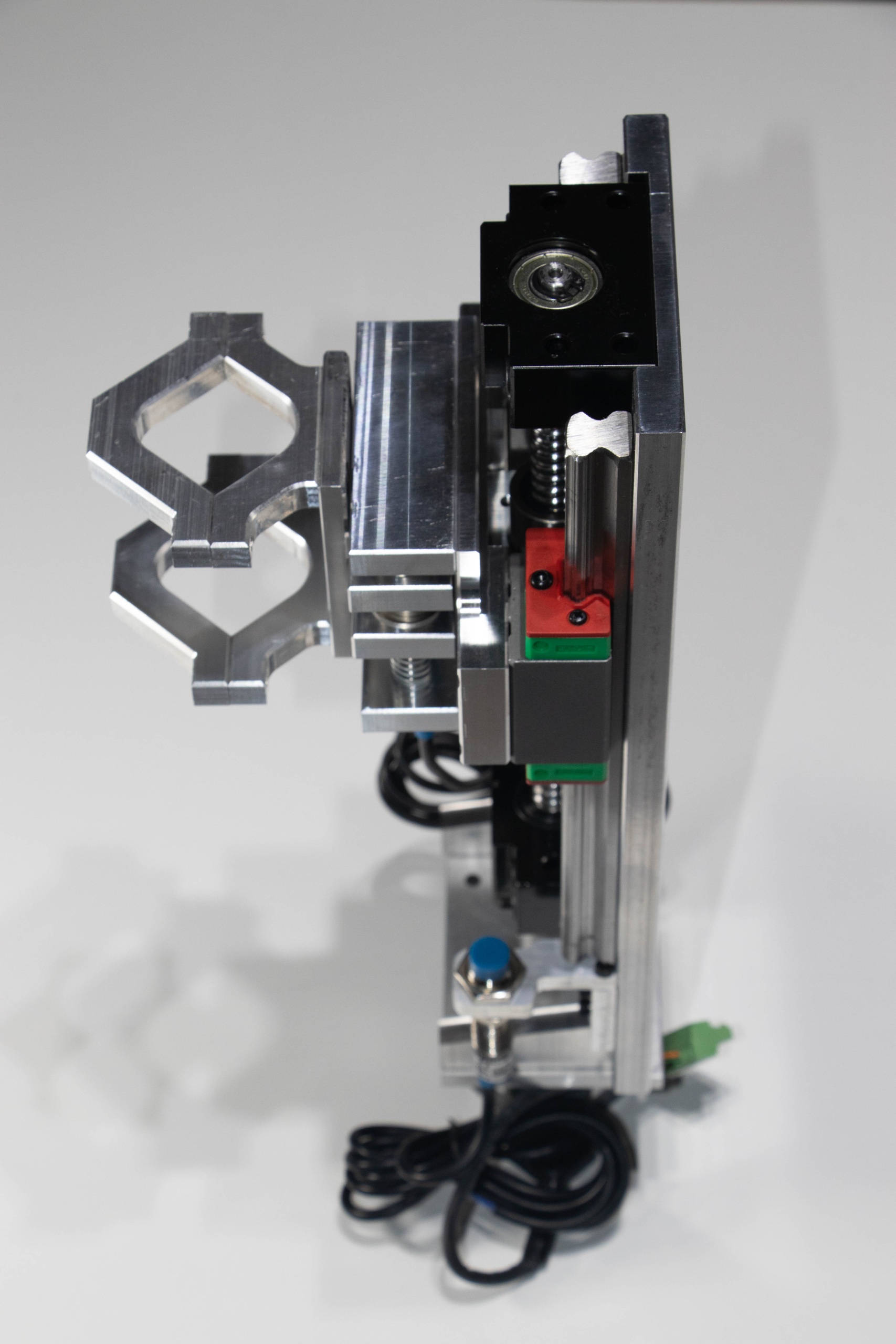

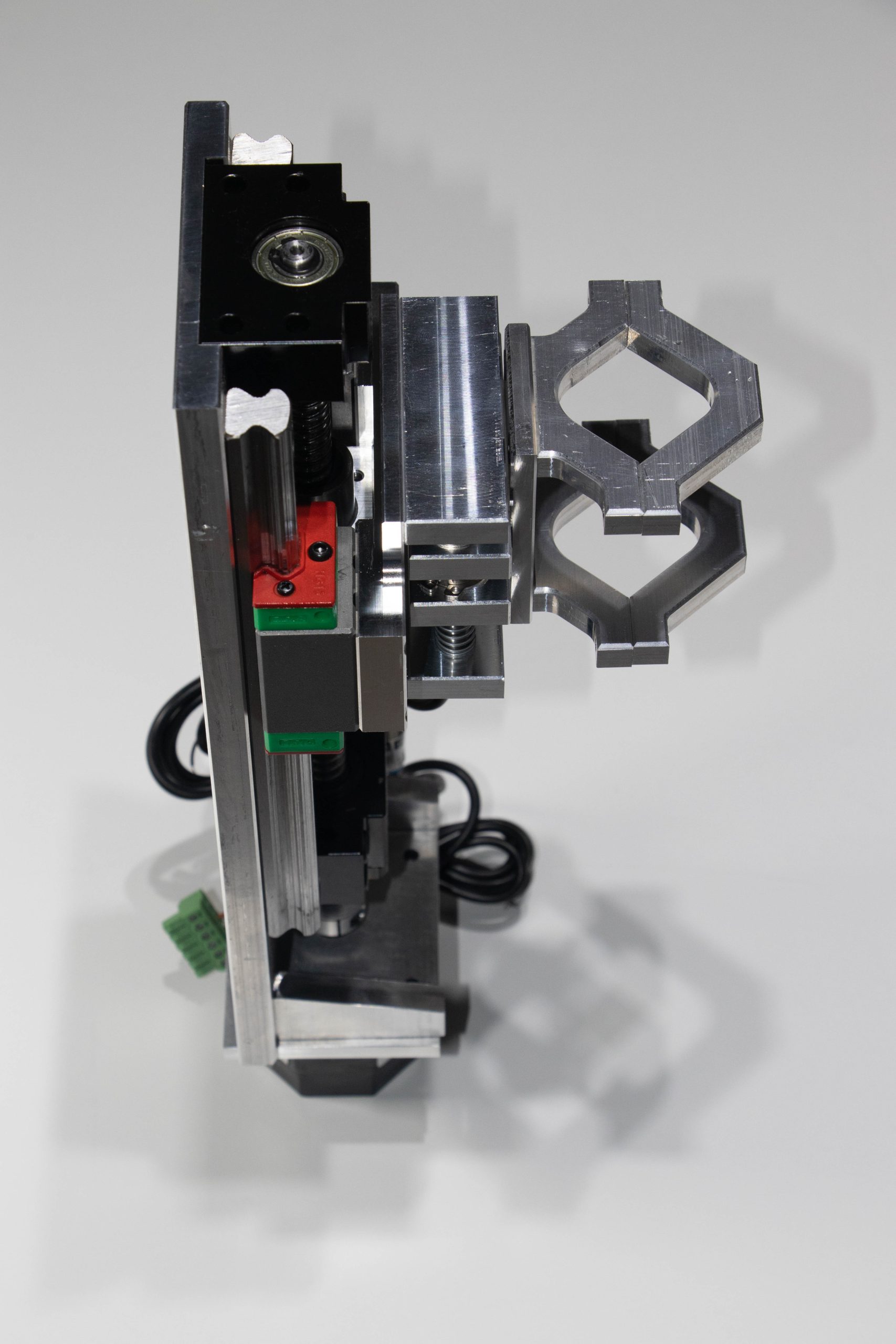

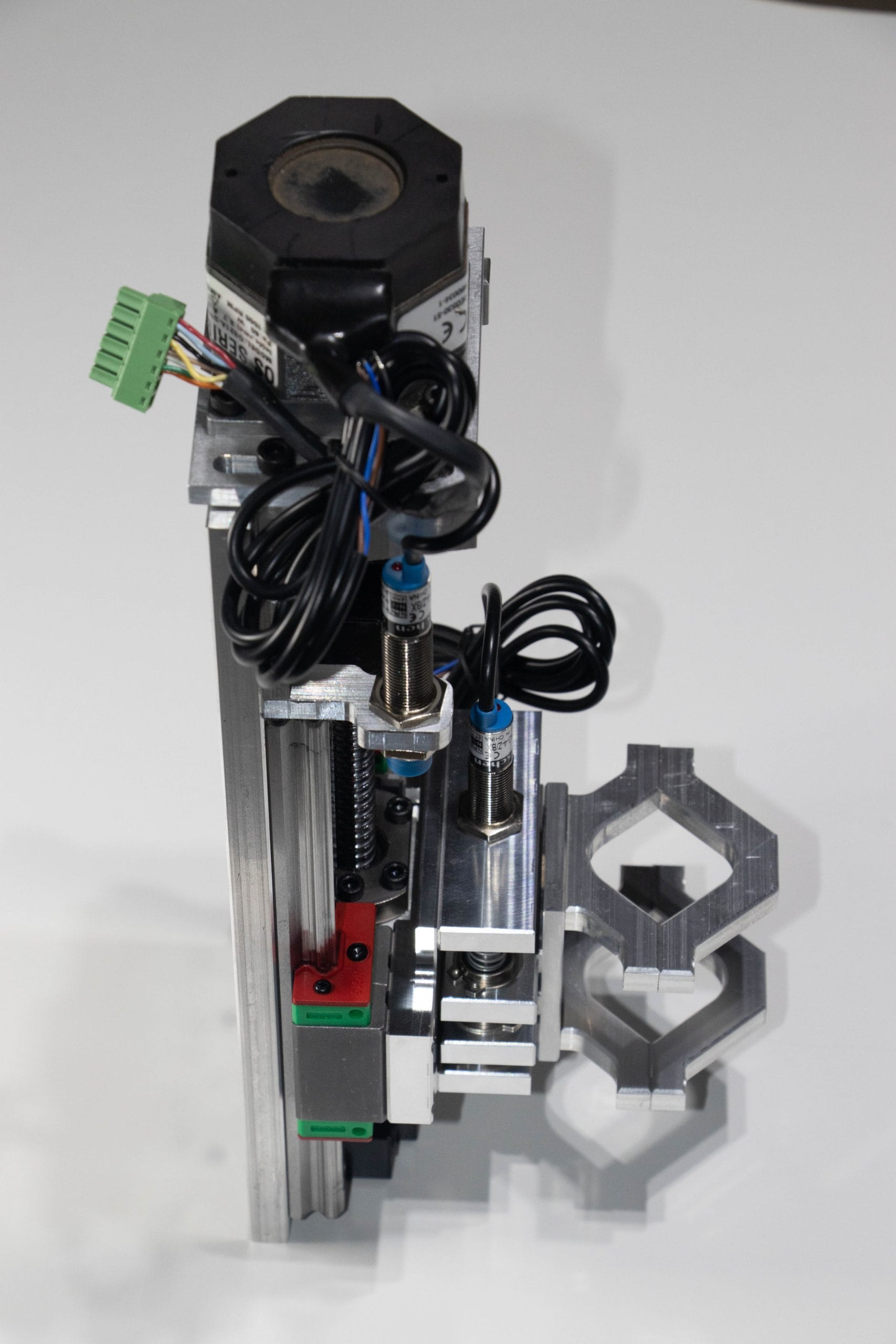

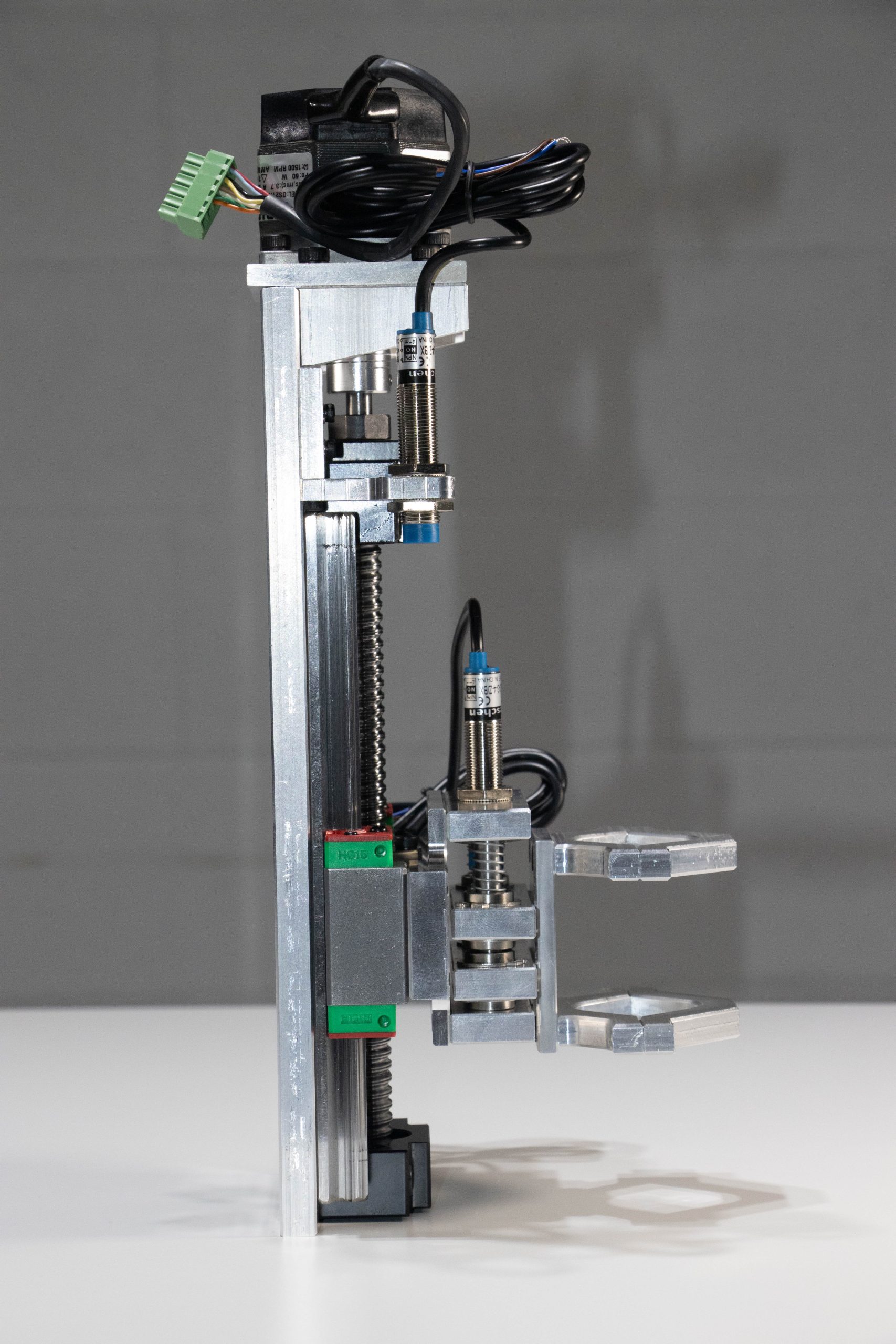

Z-axis CNC Plasma Torch Floating Head

$1,375.00

Plasma Floating Head Torch Z-axis for CNC for NEMA 23 size motor.

Category: , ,
Tags: , , , ,

Description

Plasma Floating Head Torch Z-axis for CNC for NEMA 23 size motor.

The assembly uses a 250mm SFU1204 standard ballscrew and 20mm HGR15 linear rail. with 5 inch stroke. All moving parts are industry standard and easily serviceable and replaced if needed. The floating head uses four LM8SUU linear bearing and 8mm stainless steel linear rail.
The design is meant for prolonged use, easy to service and replace any parts necessary.
The torch brackets can accommodate various sizes of torches.
Please contact me for additional information, or custom mounting plates.
Proximity sensors are included with the linear actuator.
Please note the motor is not included in this sale,

Additional information

Weight 7.25 lbs
Dimensions 12 × 6 × 5 in
Specifications

Ballscrew: SFU1204, 250mm length
Ballscrew Support: BK10/BF10
Linear Rail: HGR15, 200mm length
Sliding Block: HGH15CA
8mm stainless steel linear rail with 4 LM8SUU linear bearings
